The Voopoo Drag S3 Pod Kit is a 60W adjustable pod mod powered by a 3000mAh built-in battery. Designed for flexibility, it supports mouth-to-lung (MTL), restricted direct-to-lung (RDL), and direct-to-lung (DTL) vaping depending on the coil installed. Built around the updated PnP X platform and driven by the VooPoo GENE chipset, the Drag S3 offers wide resistance compatibility in a compact internal battery format.
As part of the latest generation in the Drag series, the S3 refines battery capacity and coil efficiency while maintaining full compatibility with the updated PnP X ecosystem.
With adjustable airflow, a 0.96-inch TFT colour display, 2ml TPD-compliant pod capacity and Type-C fast charging, the Drag S3 balances controlled performance with built-in battery convenience.
Range positioning: The Drag S3 is the built-in battery option in the Drag line-up. If you want the same PnP X coil ecosystem with external battery flexibility and higher maximum output, the Drag X3 is the external-cell alternative.
It sits within the Drag series as the internal battery alternative to the Drag X3, delivering similar coil flexibility without requiring separate batteries.
Drag S3 vs Typical Pod Kits (What’s Different)
Many pod kits are built for lower power MTL vaping with smaller batteries and limited airflow adjustment. The Drag S3 sits closer to a pod mod category, with up to 60W output, broader coil resistance support, and airflow control that can move between MTL, RDL and DTL depending on the coil. If you want one device that can be tuned for different inhale styles, the Drag S3 offers more range than standard fixed-output pod systems.
Quick overview: 60W adjustable output, 3000mAh built-in battery, PnP X coil compatibility, MTL/RDL/DTL airflow control, TFT display, and USB-C charging.
VooPoo Drag S3 Vape Kit (60W)
The VooPoo Drag S3 Vape Kit delivers adjustable output from 5W to 60W through a 3000mAh built-in battery. Positioned within the Drag series as the internal battery alternative to the Drag X3, it provides similar PnP X coil compatibility in a simplified charging format.
3000mAh Built-In Battery
The integrated 3000mAh battery provides extended runtime for a 60W device, supporting moderate to high power use throughout the day. Unlike external battery models, the Drag S3 simplifies operation with direct charging via Type-C 5V/2A input.
The chipset maintains stable output across the discharge cycle to reduce performance drop as battery capacity decreases.
The 3000mAh battery is built into the device, so no external battery purchase is required. Charge directly via the included Type-C cable.
5–60W Adjustable Output
Power can be adjusted from 5W to 60W to match the installed PnP X coil. Lower wattage settings suit higher resistance coils for MTL use, while mid-range settings support restricted airflow. Lower resistance coils such as 0.15Ω and 0.3Ω operate effectively at higher wattages for DTL vaping.
This flexibility allows the Drag S3 to adapt to different inhale styles without requiring separate devices.
0.96-Inch TFT Display & Instant Auto-Lock
The 0.96-inch TFT colour screen displays wattage, resistance, battery percentage, voltage and puff counter in real time. Multiple interface themes are available.
Capacitive touch activation allows quick unlocking, while instant auto-lock engages automatically after use to reduce accidental firing during transport.
PnP X Coil Platform Compatibility
The Drag S3 works with the complete PnP X coil range, covering resistances from 0.15Ω to 1.0Ω. This wide range allows the device to transition between MTL, RDL and DTL vaping depending on the selected coil.
Lower resistance coils (0.15Ω / 0.3Ω) are suited to higher wattage DTL use. Mid-range options (0.6Ω / 0.8Ω) support restricted airflow at moderate power levels. The 1.0Ω option is suitable for lower wattage MTL setups.
For reliable performance and correct resistance matching, use genuine Voopoo PnP X replacement coils.
Side-Filling Cartridge & Leak Control
The included PnP X cartridge features a side-filling port sealed with a silicone plug. The fill port is positioned away from the airflow channel to reduce leakage during refilling.
The press-fit coil system simplifies installation without threading, allowing quick coil replacement.
How to Set Up the Drag S3 for Best Results
To avoid dry hits and help coils last longer, prime the coil before first use. Add a few drops of e-liquid to the exposed cotton ports, fit the coil firmly, fill the pod, then leave it standing for 5–10 minutes before vaping. Start at the lower end of the coil’s recommended wattage range and increase gradually until flavour and warmth feel right.
If you notice gurgling or light leaking after refilling, check that the silicone fill plug is fully sealed, avoid overfilling, and keep the device upright for a few minutes after filling. Using the correct e-liquid thickness for the coil also helps: higher resistance coils suit 50/50 liquids, while lower resistance coils suit thicker 70/30 blends.
Adjustable Airflow & 510 Drip Tip
The sliding airflow control allows fine adjustment from tight MTL draws to open DTL configuration. Matching airflow to coil resistance helps maintain consistent vapour temperature and flavour clarity.
A removable 510 drip tip allows customisation with compatible aftermarket options if preferred.
E-Liquid Compatibility
The Drag S3 supports both balanced 50/50 e-liquids and higher VG blends depending on coil selection. Higher resistance coils perform best with 50/50 liquids or nicotine salts at lower wattages. Lower resistance coils are better suited to 70/30 high-VG shortfills operating at higher power levels.
Nicotine strength should be selected based on coil resistance and wattage. Higher nicotine levels are generally used with higher resistance MTL coils, while lower nicotine strengths (0mg–6mg) are typical for DTL setups.
Best E-Liquid Pairing Guide
Choosing the correct e-liquid for your installed coil improves flavour, coil lifespan and overall performance. Use the guide below as a quick reference:
| Coil Resistance |
Recommended VG/PG |
Typical Nicotine Strength |
Vaping Style |
| 1.0Ω |
50/50 or Nicotine Salts |
10mg–20mg |
MTL |
| 0.6Ω / 0.8Ω |
50/50 or 60/40 |
5mg–12mg |
Restricted DTL |
| 0.15Ω / 0.3Ω |
70/30 High VG |
0mg–6mg |
DTL |
Higher resistance coils work best with thinner 50/50 liquids or nicotine salts at lower wattages. Lower resistance coils are designed for thicker high-VG shortfills at higher power levels. Matching coil resistance, airflow and nicotine strength helps maintain smooth vapour production and consistent flavour.
Who the Drag S3 Is For
- Vapers who want internal battery convenience
- Users switching between MTL, RDL and light DTL styles
- Those who prefer charging directly via USB-C
- Vapers who do not want to manage external batteries
- For an in-depth breakdown of the Drag S3, read our full VooPoo Drag S3 Pod Kit Review
Pros & Considerations
-
Pros: 3000mAh capacity, wide coil range, adjustable airflow, compact design, simple charging
-
Considerations: internal battery cannot be swapped; maximum output is 60W (lower than Drag X3)
Built-In Safety Protections
- Overtime Protection
- Overtemperature Protection
- Overcharge Protection
- Low Battery Protection
- Overcurrent Protection
- Short Circuit Protection
Voopoo Drag S3 vs Drag S2 and Drag X3
| Feature |
Drag S3 |
Drag S2 |
Drag X3 |
| Maximum Output |
60W |
60W |
80W |
| Battery |
3000mAh Built-In |
2500mAh Built-In |
Single 18650 / 21700 |
| Coil Platform |
PnP X |
PnP X |
PnP X |
| Screen |
0.96-inch TFT |
0.96-inch TFT |
1.66-inch Touch |
The Drag S3 increases battery capacity compared to the Drag S2 (3000mAh vs 2500mAh) while retaining 60W output and PnP X compatibility. Compared to the Drag X3, the S3 uses a built-in battery rather than external cells and has a lower maximum wattage. Users prioritising convenience and direct charging may prefer the S3, while those seeking higher wattage and 21700 battery support may prefer the X3.
Specifications
| Output Power |
5–60W Adjustable |
| Battery |
3000mAh Built-In |
| Display |
0.96-inch TFT Colour |
| Charging |
Type-C 5V/2A |
| Resistance Range |
0.15Ω – 3.0Ω |
| Pod Capacity |
2ml (TPD Compliant) |
| Airflow |
Adjustable |
| Vaping Style |
MTL / RDL / DTL |
If you are exploring the Drag range, browse our full selection of Voopoo vape kits to compare battery configurations and power options, keep your setup running with genuine Voopoo coils, or discover similar high-performance devices in our sub-ohm vape kits collection.
E-Liquid Compatibility
A 50/50 VG/PG ratio is the ideal starting point for the Voopoo Drag S3 60W Built-In Battery Pod Kit, thin enough to wick efficiently through compact MTL coils and consistent enough to deliver clean flavour at lower wattages. It is built exclusively for mouth-to-lung vaping, with coil resistances spanning from 0.15Ω to 0.6Ω across a 5-60W output range. Nicotine salt e-liquids are the natural choice at these resistance levels, delivering a smooth, satisfying throat hit at higher nicotine strengths without harshness, which suits the tighter draw of MTL vaping particularly well. Freebase e-liquids at 3mg or 6mg also work well if you prefer a lighter nicotine hit.
Each pod holds 2ml of e-liquid and uses a top fill system, keeping refilling straightforward and mess-free.
Thicker e-liquids such as 70/30 high-VG blends are not well suited to compact MTL coils, they can struggle to wick consistently at lower wattages and increase the risk of dry hits.
Browse Elux Legend nic salts for a well-matched pairing, also available as part of our 5 nic salts for £11 multi-buy deal.

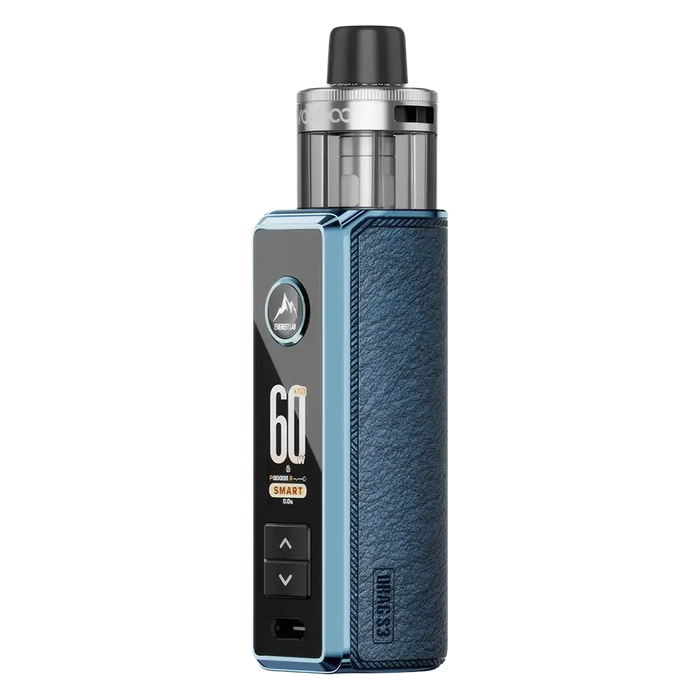

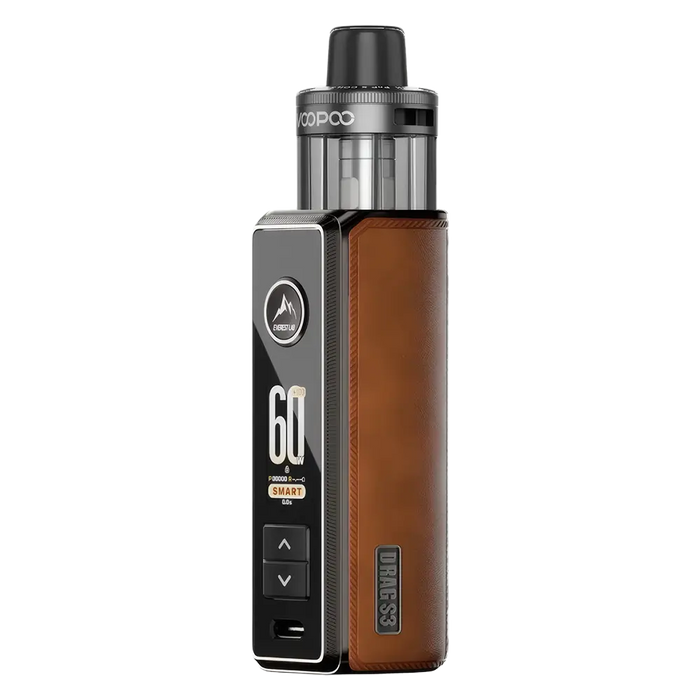

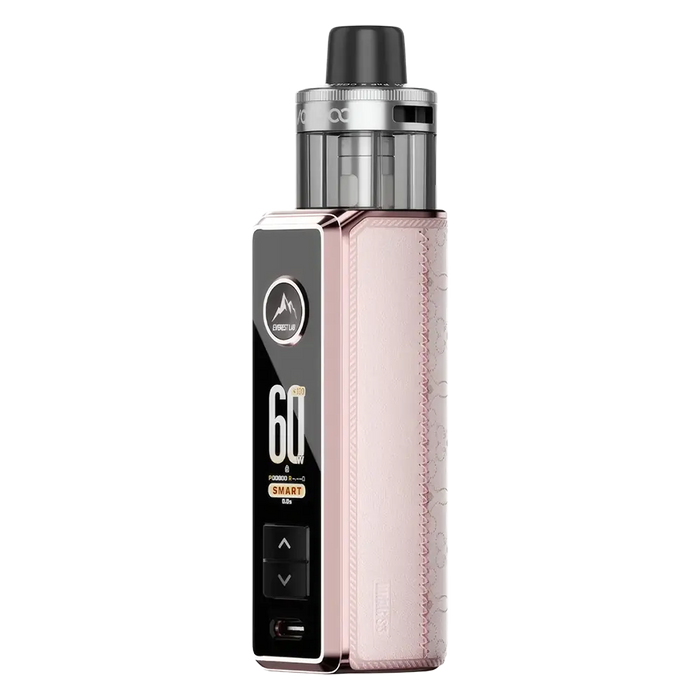

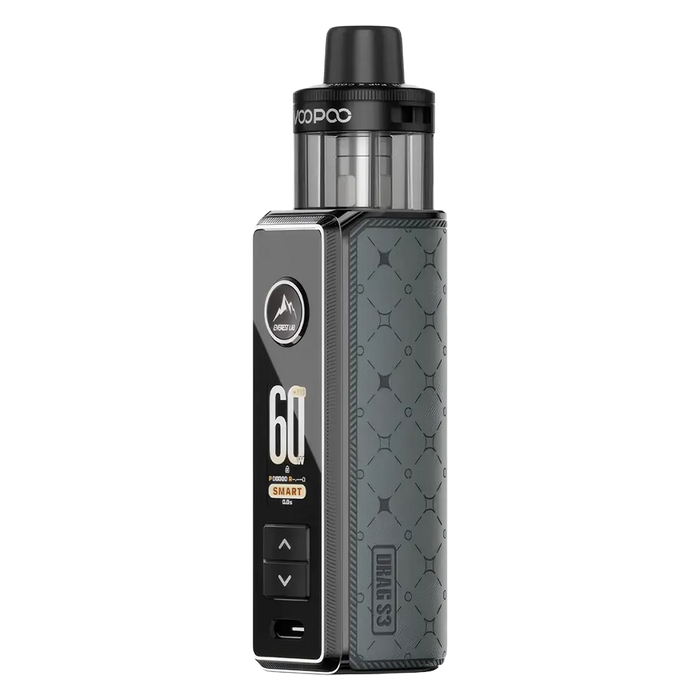

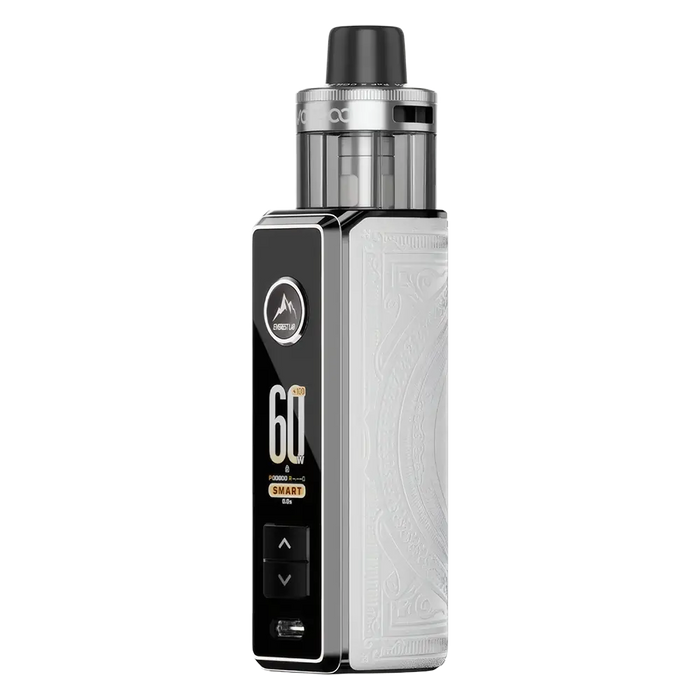

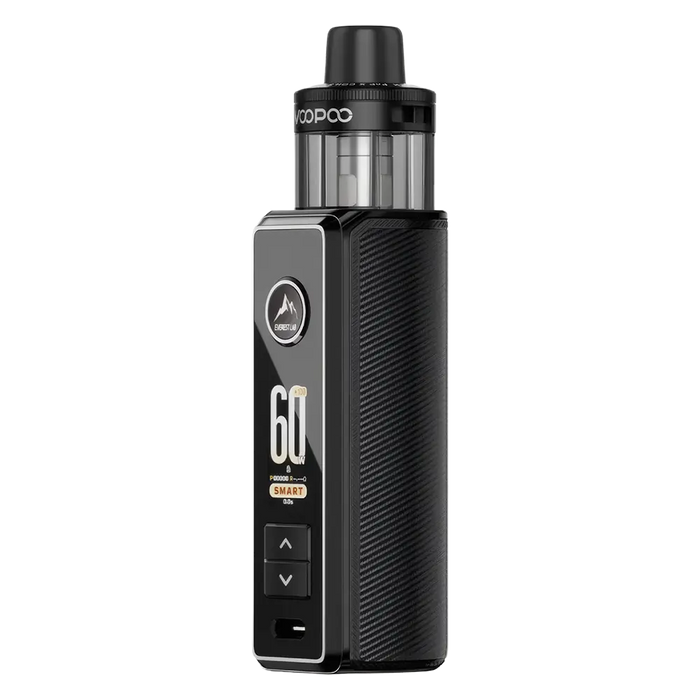

Available Colours
The Voopoo Drag S3 60W Built-In Battery Pod Kit is available in the following 7 colours:
What's In The Box?
- 1x VooPoo Drag S3 Device
- 1x PnP X DTL Pod (2ml)
- 1x PnP X 0.2Ω Coil (Pre-installed)
- 1x PnP X 0.3Ω Coil
- 1x 510 Drip Tip
- 1x USB-C Charging Cable
- 1x User Manual
- 1x PnP X Platform Card
